Detailed parameters
| Shape of the photocathode polar region | square |
| Photocathode polar area dimensions | 14 mm x 14 mm |
| Wavelength (short) | 300 nm |
| Wavelength (long) | 740 nm |
| Wavelength (peak) | 520 nm |
| Dimensions (W x H x D) | 38 mm x 38 mm x 55 mm |
| Input Voltage | +4.5 to +5.5 V |
| Maximum value Input voltage | +5.5 V |
| Maximum value Input current | +3.5 mA |
| Maximum value Output signal current | 100 μA |
| Maximum value Control voltage | +1.1 V |
| Recommended control voltage adjustment range | +0.5 to +1.0 V |
| [Cathode] Typical Radiation Sensitivity | 189 mA/W |
| [Cathode] Brightness Sensitivity Typ. | 850 μA/lm |
| [Anode] Radiation Sensitivity Typ. | 3.8 x 105 A/W |
| [Anode] Brightness Sensitivity Typ. | 1.7 x 103 A/lm |
| [Anode] Dark Current Typ. | 10 nA |
| [Anode] Dark current max. | 50 nA |
| [Time Response] Rise Time Typical | 1.1 ns |
| Ripple noise (peak-to-peak) max | 0.2 mV |
| Establishment time max. | 10 s |
| Operating Temperature | +5 to +50 °C |
| Storage temperature | -20 to +50 °C |
| weights | 93 g |

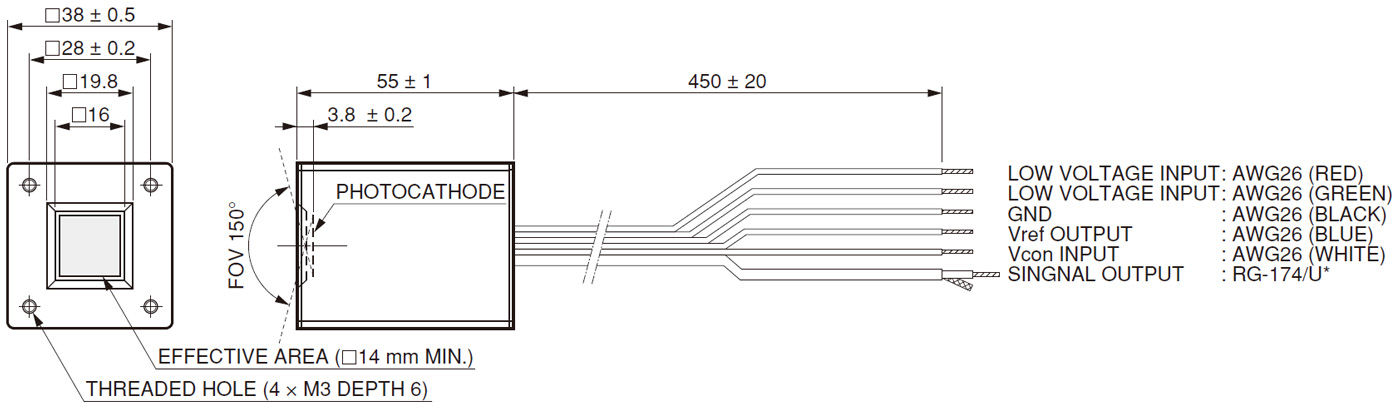

Outline dimension drawing (unit: mm)
