characterization

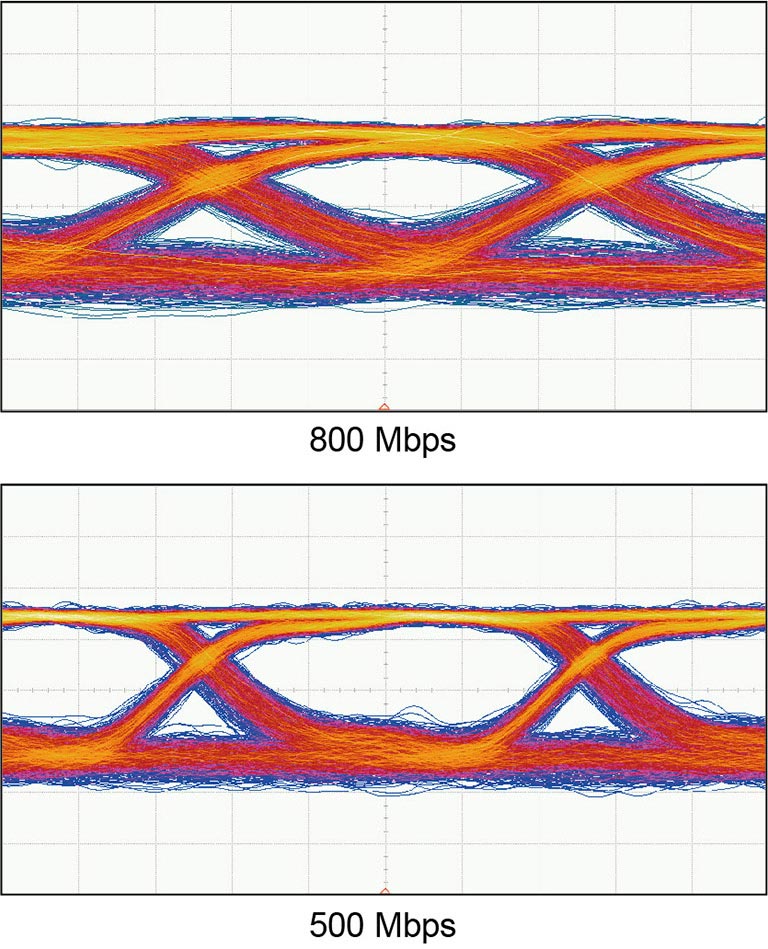

eyelet pattern

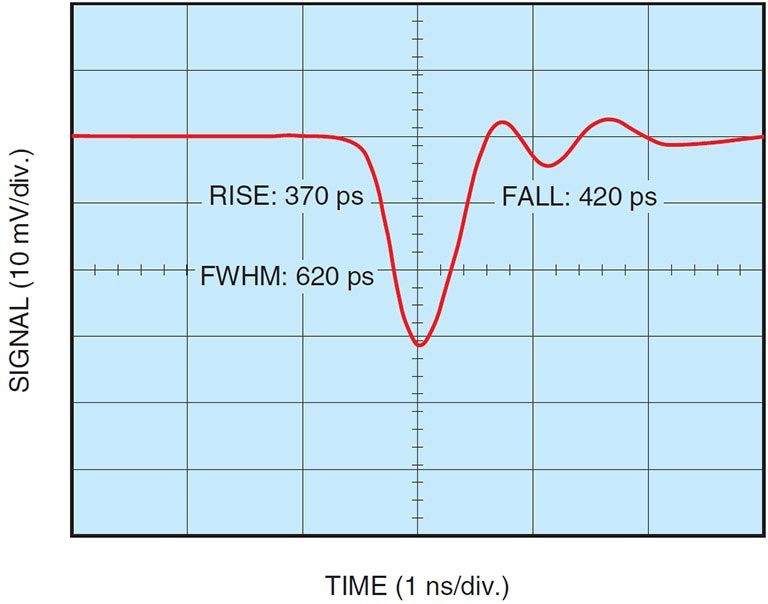

time response
Detailed parameters
| Shape of the photocathode polar region | orbicular |
| Photocathode polar area dimensions | 8 mm diameter |
| Wavelength (short) | 300 nm |
| Wavelength (long) | 650 nm |
| Wavelength (peak) | 400 nm |
| Dimensions (W x H x D) | 22 x 22 x 30 mm |
| Input Voltage | +4.5 to +5.5 V |
| Maximum value Input voltage | 5.5 V |
| Maximum value Input current | 3.2 mA |
| Maximum value Output signal current | 100 μA |
| Maximum value Control voltage | +1.0 (input impedance 1 M Ω) V |
| Recommended control voltage adjustment range | +0.5 to +1.0 (input impedance 1 M Ω) V |
| [Cathode] Brightness sensitivity min. | 80 μA/lm |
| [Cathode] Brightness Sensitivity Typ. | 105 μA/lm |
| [Cathode] Blue Sensitivity Index (CS 5-58) Typical Value | 13.5 |
| [Cathode] Typical value of radiation sensitivity | 110 mA/W |
| [Anode] Brightness sensitivity min. | 0.4 A/lm |
| [Anode] Brightness Sensitivity Typ. | 2.63 A/lm |
| [Anode] Typical Radiation Sensitivity | 2.75 x 103 A/W |
| [Anode] Dark Current (After 30 Minutes) Typical | 0.1 nA |
| [Anode] Dark Current (after 30 minutes) Max. | 1 nA |
| [Time Response] Rise Time Typical | 0.37 ns |
| Ripple noise (peak-to-peak) max | 0.1 mV |
| Establishment time max. | 10 s |
| Operating Temperature | +5 to +50 °C |
| Storage temperature | -20 to +50 °C |
| weights | 48 g |

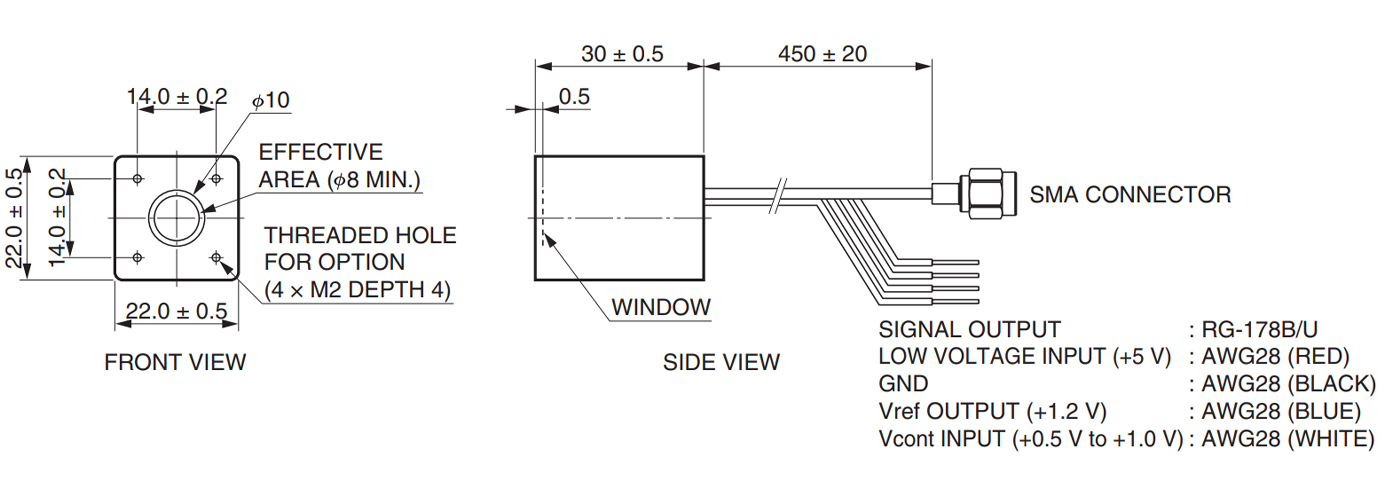

Outline dimension drawing (unit: mm)
