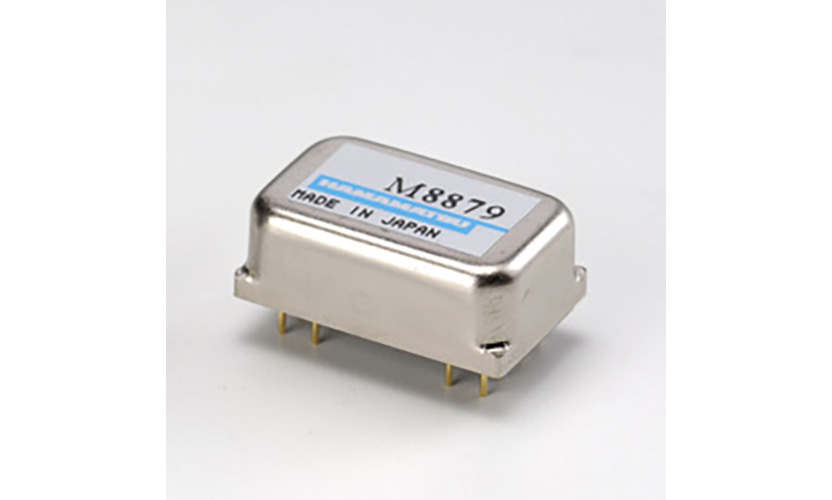

M7279 and M8879 Amplifier Modules

The M7279 and M8879 are non-inverting amplifier modules designed specifically for use with photodetectors such as photomultiplier tubes. These amplifier modules can operate with either current input or voltage input, allowing direct connection to photomultiplier tubes or other photodetectors.The M7279 is touted as a hybrid IC with protective epoxy and an 8-pin SIP-type, and the M8879 is a 10-pin hybrid IC that allows for compact mounting dimensions on a printed circuit board. Out-of-phase voltage and gain can be easily adjusted by connecting an external variable resistor.

Product Literature Download

Enquire Now

Category: single-point detector

Description

Detailed parameters

model number	M7279	M8879
typology	Amplifier Modules	Amplifier Modules
Frequency band (-3 dB)	DC to 10 MHz	DC to 150 MHz
Voltage Gain	40 (approx. 100 times) dB	381 (approx. 80 times) dB
Current to Voltage Conversion Factor	10 mV/μA	4 mV/μA
Amplifier Input (Output)	+/- voltage (non-inverted)	+/- voltage (non-inverted)
Input Impedance	100 Ω	50 Ω
Recommended load resistance	50 Ω	50 Ω
Maximum value Output signal voltage	±1.5 V (at 50 Ω), ±3.5 V (at 1M Ω)	±1.4 V (at 50 Ω), ±3 V (at 1M Ω)
Input Connector	(on-board type)	(on-board type)
output connector	(on-board type)	(on-board type)
Power Connectors	(on-board type)	(on-board type)
Supply Voltage	±5.0 to ±6.5 V	±5 to ±6 V
Power supply current max.	±45 mA	±61 mA
Dimensions (W x H x D)	21 x 10.4 x 3.5 mm	20 x 7.5 x 12.6 mm
weights	1.1 g	2.5 g
