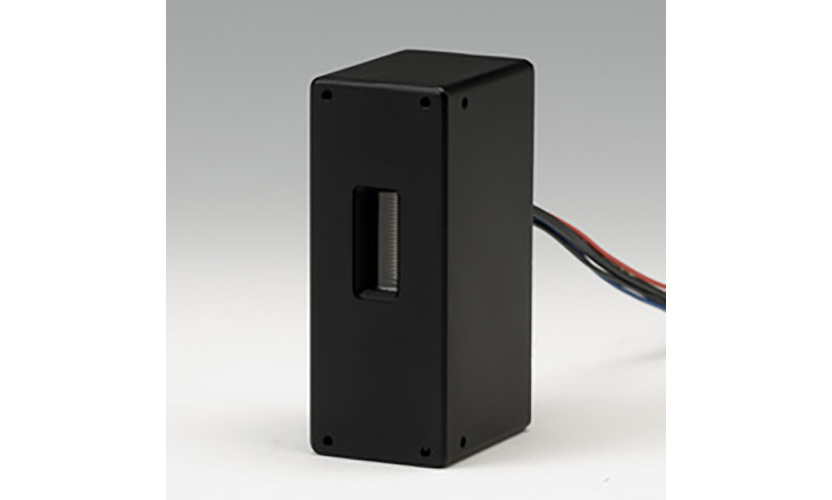

H11462 Series Voltage Output PMT Modules

The H11462 series photomultiplier modules consist of a 28-mm (1-1/8″) diameter side-mount photomultiplier, a high-voltage power supply circuit, and a low-noise amplifier. Two types of amplifiers are available, with current-to-voltage conversion factors of 1 V/μA or 0.1 V/μA, and frequency bands of DC to 20 kHz or DC to 200 kHz.

Product Literature Download

Enquire Now

Category: single-point detector

Description

Product Specification

model number	spectral response	photocathode ray	window material	Current-voltage conversion factor	bandwidth
H11462-011	185 nm to 710 nm	alkali	Ultraviolet glass	1 V/μA	DC to 20 kHz
H11462-021	185 nm to 900 nm	polyalkali	Ultraviolet glass
H11462-031	185 nm to 900 nm	polyalkali	Ultraviolet glass
H11462-012	185 nm to 710 nm	alkali	Ultraviolet glass	0.1 V/μA	DC to 200 kHz
H11462-022	185 nm to 900 nm	polyalkali	Ultraviolet glass
H11462-032	185 nm to 900 nm	polyalkali	Ultraviolet glass

Amplifier specifications can be changed upon request. This product cannot be used in a vacuum or depressurized environment. Please be careful when using the H11462 series to measure light below 190nm.
