Three lines of pendulum air-float vibration isolation platform

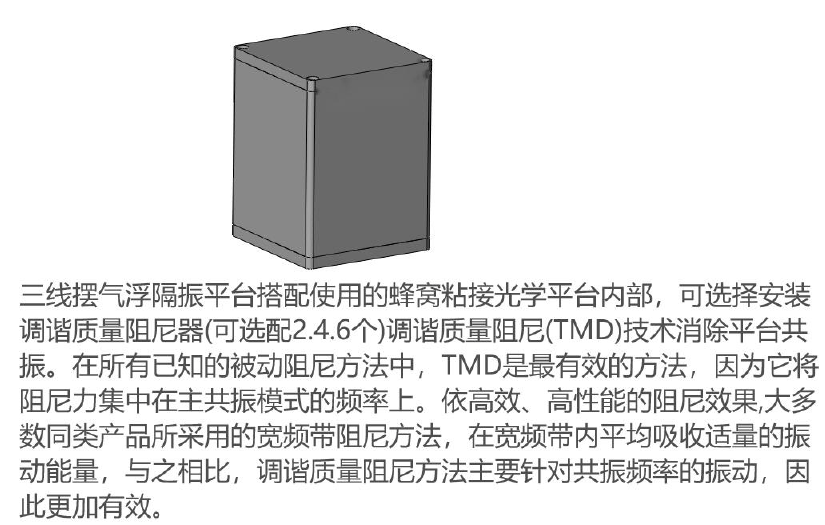

Laminar flow damping technology greatly improves damping efficiency, and the hybrid cavity design greatly increases the flexible volume for a given size while effectively reducing the intrinsic frequency (optional TMD tuned mass dampers are available for the table, see right).

• High-performance pneumatic dampers with a minimum resonance frequency of 1Hz.
• Hybrid cavity design maximizes stability and low intrinsic frequency.
• The tops of the legs are equipped with a safety connector, which greatly enhances safety
• Micron-level laminar flow damping
• SMC Nanoscale High Flow Pneumatic Actuators
• Three-wire pendulum design maximizes vibration isolation and high precision reset after disturbances.
• Top adjuster for easy ±10mm adjustment

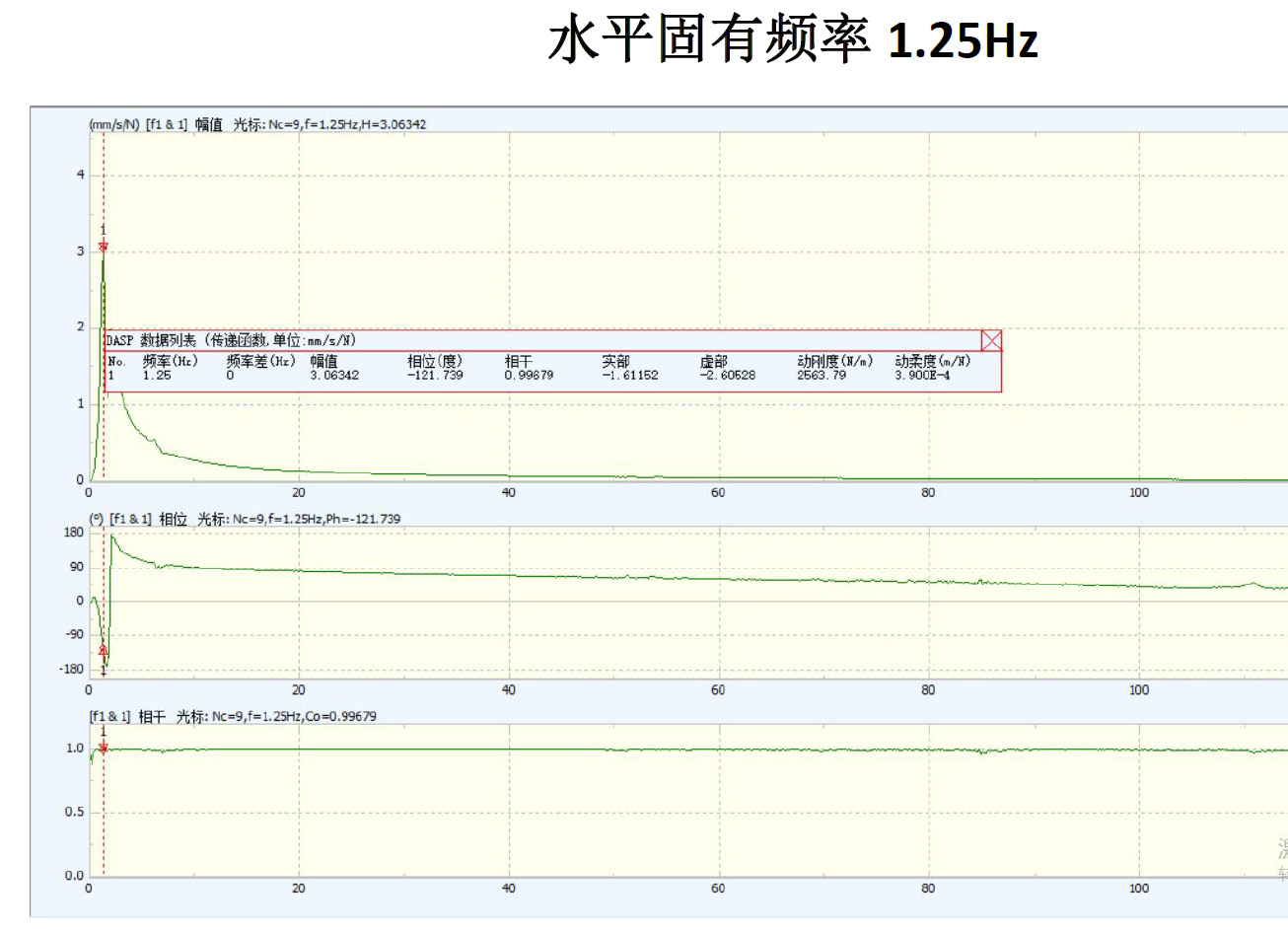

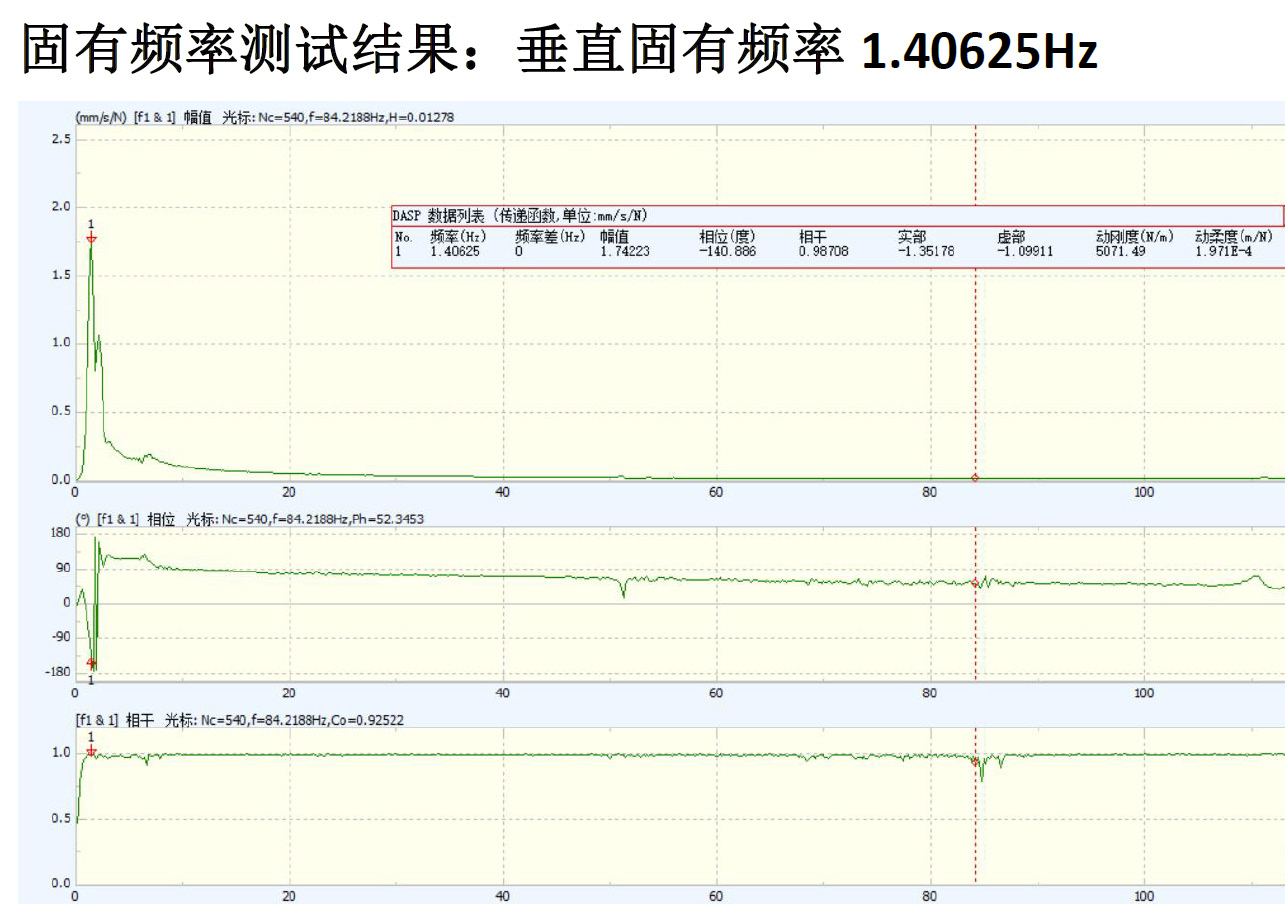

• Intrinsic frequency: Vertical < 1.0-1.5Hz;

Horizontal < 1.0-1.5Hz (depending on actual load) Vertical resonance down to 1Hz

• Amplitude: < 0.002
• Adjustment mode: automatic centering
• Damping efficiency: Vertical: 85-90% at 5Hz; 91-96% at 10Hz Horizontal: 5Hz:

87-92%; 92-97% at 10Hz

• Work reset accuracy: ±0.1mm
• Vibration isolation : Triple line pendulum, hybrid cavity structure
• Damping method: micron-level laminar flow damping
• Air source: standard silent air compressor; noise: 52db
