Single Pendulum Air Float Vibration Isolation Platform

Single pendulum air-bearing vibration isolation platform internal flexible dual-cavity and ultra-small hole laminar flow damping design, the internal center of the single pendulum structure, when the external vibration of the internal pendulum swing can be effective in eliminating the external vibration, the use of imported valves, the top of the adjusting device can be completed ±15mm adjustment range, the whole system comes standard with a diaphragm protector is recommended for the vibration of the instrument is very high requirements for the use of casters can be optional.

Product Literature Download

Enquire Now

Category: Optical platform

Description

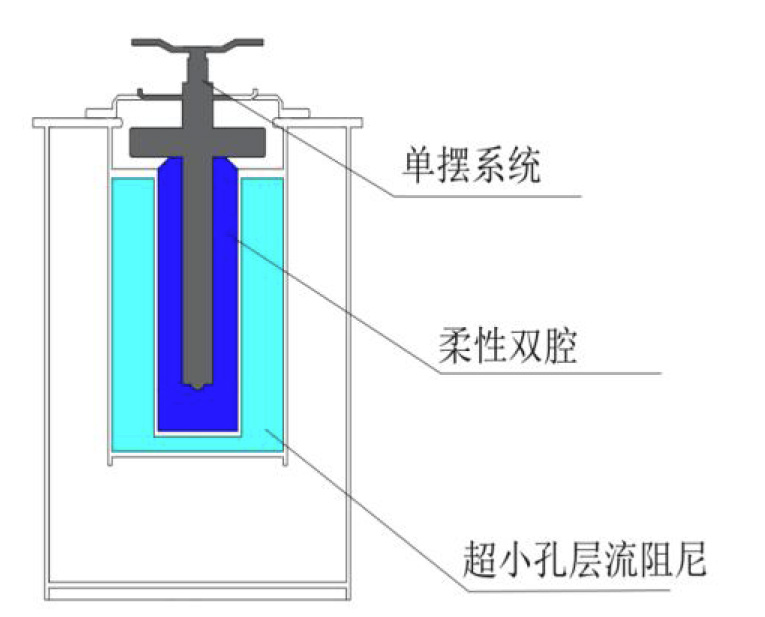

Center monoshock structure greatly improves vibration isolation performance
Flexible dual-cavity design improves overall stability; ultra-small hole laminar flow damping reduces resonance frequency
Top adjustment device compensates for uneven floors and allows ±10mm adjustment
Intrinsic frequency: Vertical < 1.2-1.8 Hz; Horizontal < 1.2-1.6 Hz (related to actual load)
Amplitude: < 0.004
Adjustment mode: automatic centering
Damping efficiency: Vertical: 84-90% at 5Hz; 89-93% at 10Hz Horizontal: 84-90% at 5Hz.

92%; at 10 Hz: 89-92%

Vibration isolation method: pendulum dissipation
Damping method : Laminar flow damping with ultra-small holes
Air source: standard silent air compressor; noise: 52db

model number	Dimensions (mm)	Outer diameter of legs (mm)	Number of supports	Adjustable height
OP-AID-1208	1200×800	220	4 Support	±10mm
OP-AID-1210	1200×1000	220	4 Support	±10mm
OP-AID-1510	1500×1000	220	4 Support	±10mm
OP-AID-1512	1500×1200	220	4 Support	±10mm
OP-AID-1812	1800×1200	220	4 Support	±10mm
OP-AID-2010	2000 x 1000	220	4 Support	±10mm
OP-AID-2012	2000×1200	220	4 Support	±10mm
OP-AID-2015	2000 x 1500	220	4 Support	±10mm
OP-AID-2412	2400×1200	220	4 Support	±10mm
OP-AID-2415	2400 x 1500	220	4 Support	±10mm
OP-AID-3015	3000 x 1500	220	6 Support	±10mm
