Product Applications:
- fiber optic sensing
- OCT
- Industrial Inspection
- broadband spectroscopy
- fluorescence imaging
Product Features:
- Power >500mW

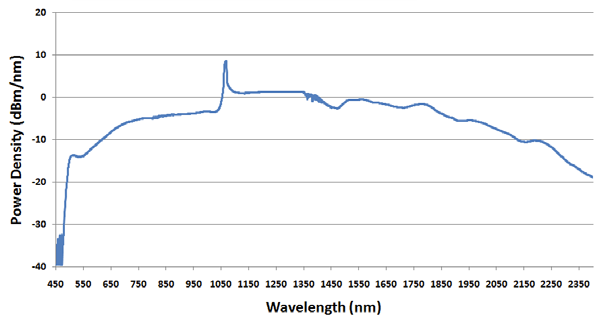

- Spectral range 470nm-2400nm
- Spectral stability (800-1700nm) <0.1dB
- Power spectral density (800-1700nm) >-10dBm/nm
- Single-mode fiber FC header output
model number | SC-5 |
total power | >1W |
wavelength range | 450nm-2400nm |
Spectral power density (800-1700 nm) | >-10dBm/nm |
Spectral stability (800-1700nm) | <0.1dB |
repetition rate | 5MHz |
exports | Spatial collimation head (optional single-mode fiber FC head) |
Beam quality | M2 <1.1 |
pulse width | ~100ps |
Fiber Length | 1.5m |
polarization (of waves) | unpolarized (light) |
containment | USB, Wireless Bluetooth Control |
Synchronized Output (SMA) | NIM signal output Voltage amplitude 0-1V TTL signal output Voltage amplitude 0-3.3V |
sizes | 300mm*245mm*70 mm |
