FL 26BW Long Exposure Cooling CMOS Camera

28.3 mm (1.8″)
6244 (H) × 4168 (V)
3.76 μm x 3.76 μm
< 0.0005 e-/p/s
-25°C @ 22°C

Product Literature Download Product Drawing Download

Category: imaging camera

Description

Products

FL 26BW is a new member of Xintu's new generation of depth-cooled products. It adopts Sony's latest back-illuminated CMOS detector, and Xintu advanced refrigeration sealing process, image noise reduction technology to create a joint, in the ultra-long-exposure performance to reach the level of the depth of refrigeration CCD at the same time, field of view (1.8 inches), speed, dynamic range and other performance comprehensively beyond the typical CCD. Can be a complete replacement for the refrigeration of the CCD long-exposure applications in the advanced microscopic imaging and industrial inspection also has a wide range of Application Prospects.

<0.0005 e-/p/s dark current Alternative to cold CCD for long exposure applications

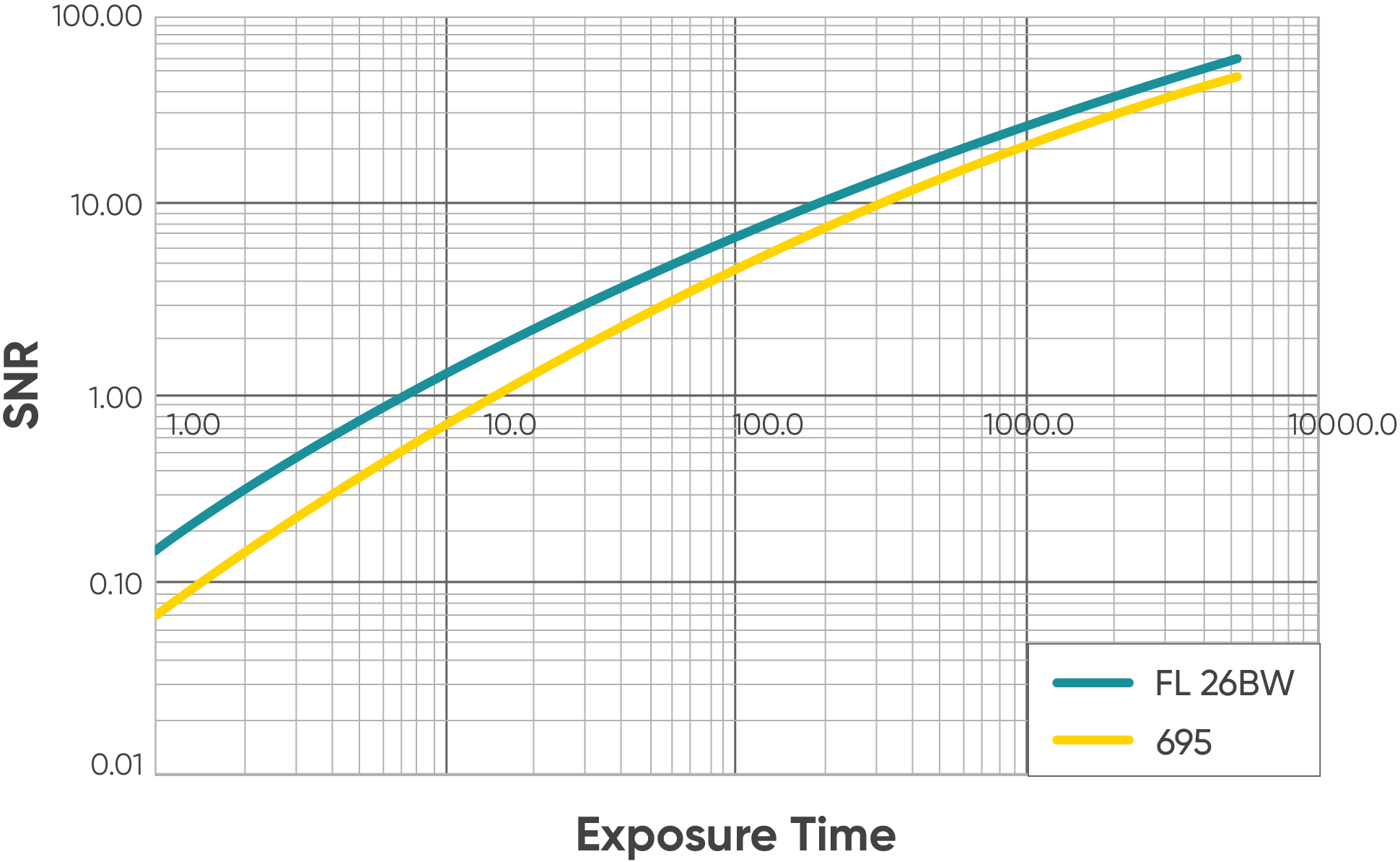

The FL 26BW has a dark current as low as 0.0005 e-/p/s, and the chip cooling temperature can be locked to -25°C. Imaging performance (signal-to-noise ratio) is superior to that of a typical depth-cooled CCD (ICX695) even at exposures of up to 30 minutes.

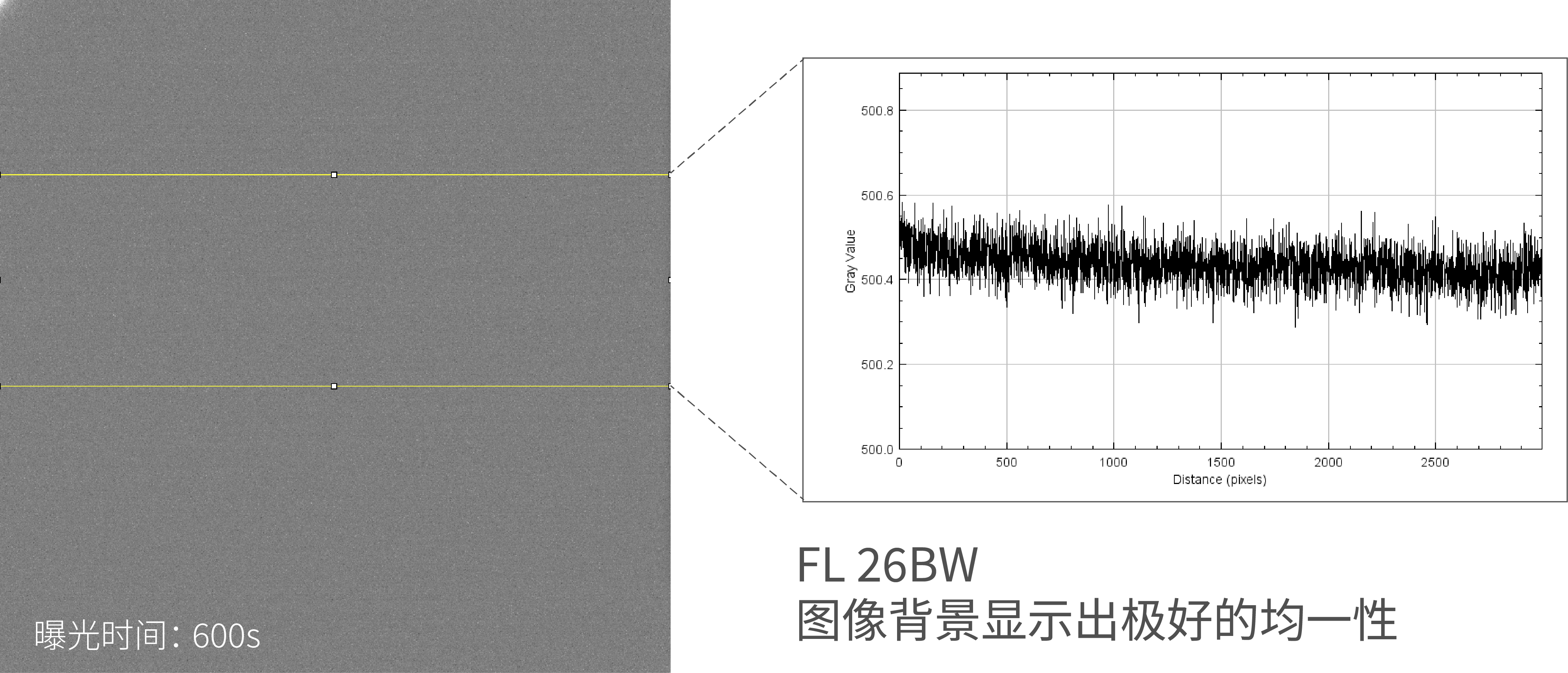

Background homogeneity for more accurate quantitative analysis

FL 26BW integrates Sony's latest back-illuminated chip's excellent glow suppression capability and Xintu's advanced image noise reduction processing technology, which basically eliminates undesirable factors such as bright corners and bad pixels, and makes the imaging background uniform, which is more suitable for quantitative analysis applications.

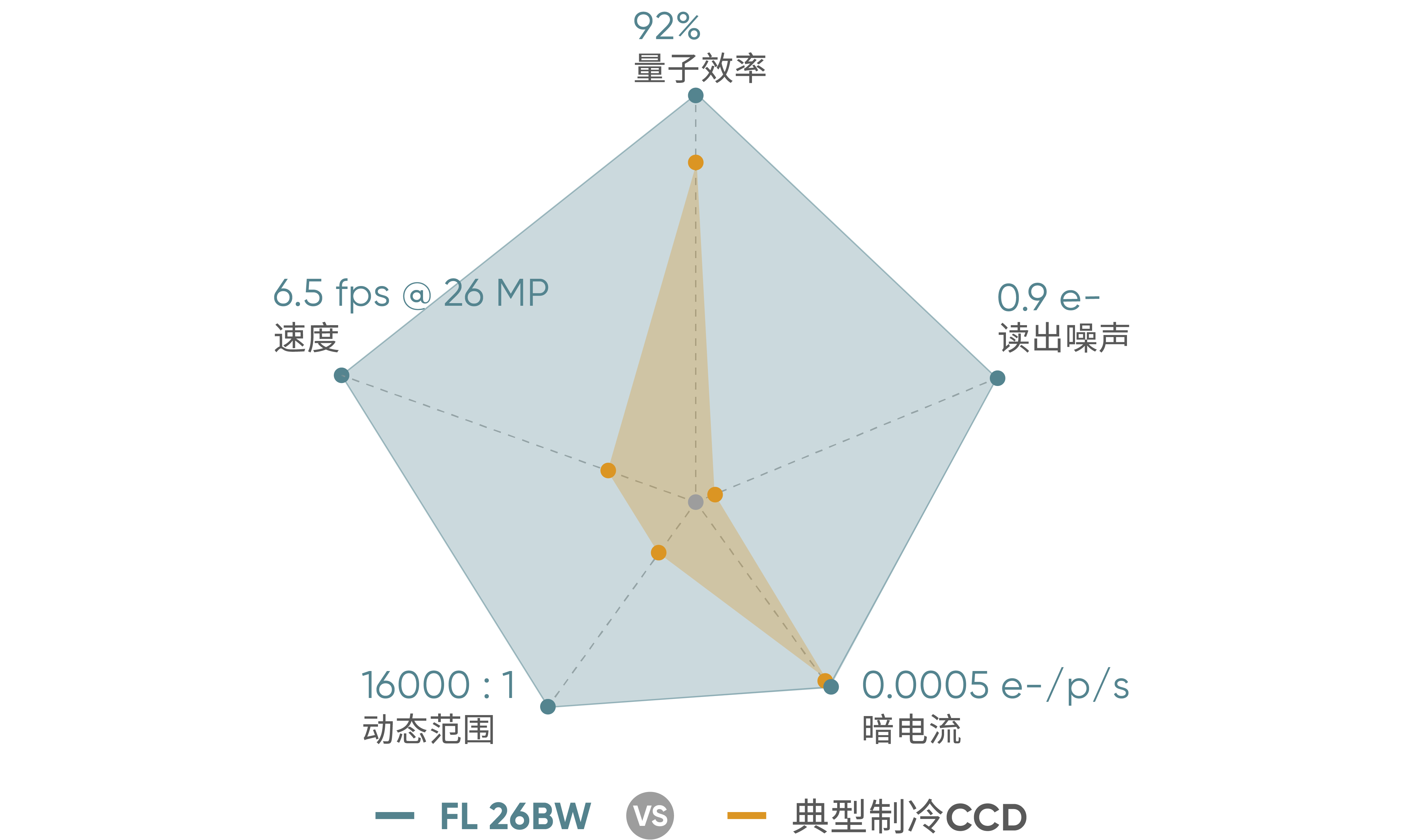

SONY back-illuminated scientific-grade chip Superior overall imaging performance

FL 26BW adopts Sony's new generation of back-illuminated scientific-grade CMOS detector, with long exposure performance comparable to that of a CCD, peak quantum efficiency up to 92%, readout noise of only 0.9 e-, low-light imaging capability beyond that of a CCD, and a dynamic range of more than four times that of a traditional CCD.

Technical Parameters >

Model:FL 26BW
Chip Type:BSI CMOS
Chip Model:SONY IMX571BLR-J
Color/Black & White:Black & White
Diagonal Size:28.3 mm (1.8″)
Effective area: 23.4 mm x 15.6 mm
Pixel size: 3.76 μm × 3.76 μm
Resolution:6244 (H) × 4168 (V)
Peak quantum efficiency:92 % @ 530 nm
Dark current:< 0.0005 e-/p/s
Bit depth: 16 bit
Gain Mode: Gain 0, Gain 1, Gain 2, Gain 3
Full well capacity: 50 ke- @ Gain 0, 15 ke- @ Gain 1, 7.8 ke- @ Gain 2, 3 ke- @ Gain 3
Readout noise: 2.7 @ Gain 0, 1.0 @ Gain 1, 0.95 @ Gain 2, 0.85 @ Gain 3
Frame rate: 6.5 fps
Shutter Type:Rolling
Exposure time:34 μs ~ 60 min
Image Correction:DPC
ROI: Support
Binning:2 x 2, 3 x 3, 4 x 4, 5 x 5, 6 x 6, 8 x 8, 16 x 16
Refrigeration mode: air-cooled
Cooling temperature:-25 °C @ room temperature (22 °C)
Trigger Mode: Hardware, Software
Trigger Outputs: Exposure Start, Global, Readout End, High, Low
Trigger Interface:Hirose
SDK:C, C++, C#
Data interface: USB 3.0
Optical interface: M42, customizable
Power supply: 12 V / 8 A
Power consumption:≤ 55 W
Camera size: 85 mm x 85 mm x 97 mm
Weight:945 g
Operating System:Windows / Linux
Operating Environment:Operating: Temperature 0~40 °C, Humidity 10~85 %
Storage: Temperature -10~60 ℃, Humidity 0~85 %
