Aries 16 High Sensitivity sCMOS Scientific Camera

16 μm x 16 μm
0.9 e- Readout noise
90 % Peak QE
800 (H) x 600 (V)
USB 3.0 & CameraLink

Product Literature Download Product Drawing Download

Category: imaging camera

Description

Products

Xintu Aries 16 realizes a major breakthrough in sensitivity performance for back-illuminated sCMOS cameras. The 16 μm super-large image element design scheme adopted, the sensitivity is more than 5 times higher than the typical 6.5 μm image element, and the low-light detection capability is greatly improved; the readout noise is as low as 0.9 e-, which can be used in the field of photon energy level limit signal detection by replacing EMCCD cameras in equivalent speed, and is not affected by the multiplicative noise, gain aging, and other factors, and has the advantage of a higher dynamic range.

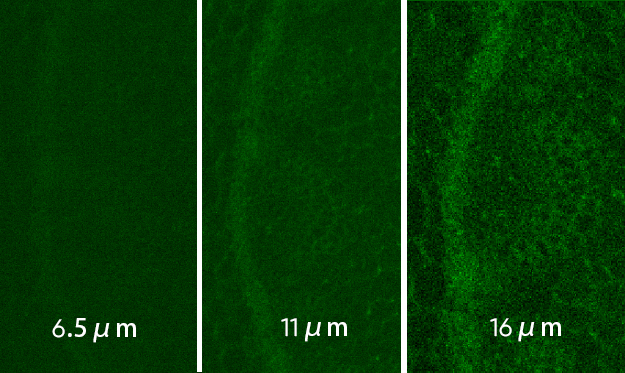

16μm Large Image / Back-illuminated sCMOS

The Aries 16 not only adopts back-illuminated chip process technology with a peak quantum efficiency of up to 90%, but also utilizes a large 16µm pixel design scheme, which improves sensitivity by more than 5 times compared to a typical 6.5µm pixel, and dramatically improves low-light detection capability.

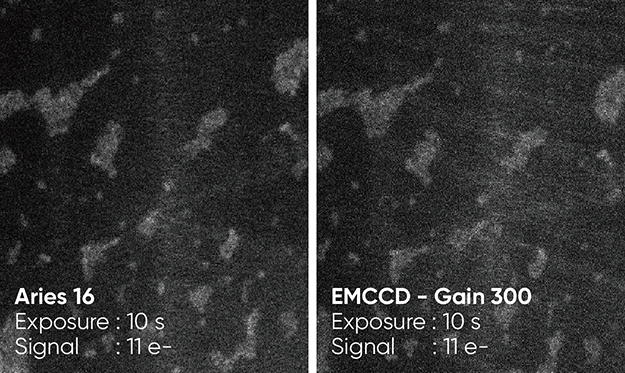

0.9 e-sub-electronic readout noise

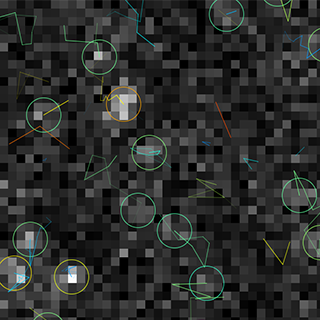

With a readout noise of only 0.9 e-, the Aries 16 can replace EMCCD cameras in terms of equivalent speed, and is not affected by multiplicative noise, gain aging, etc. It has the advantage of a higher dynamic range, and can be widely used in the field of photon energy level of the limit signal detection.

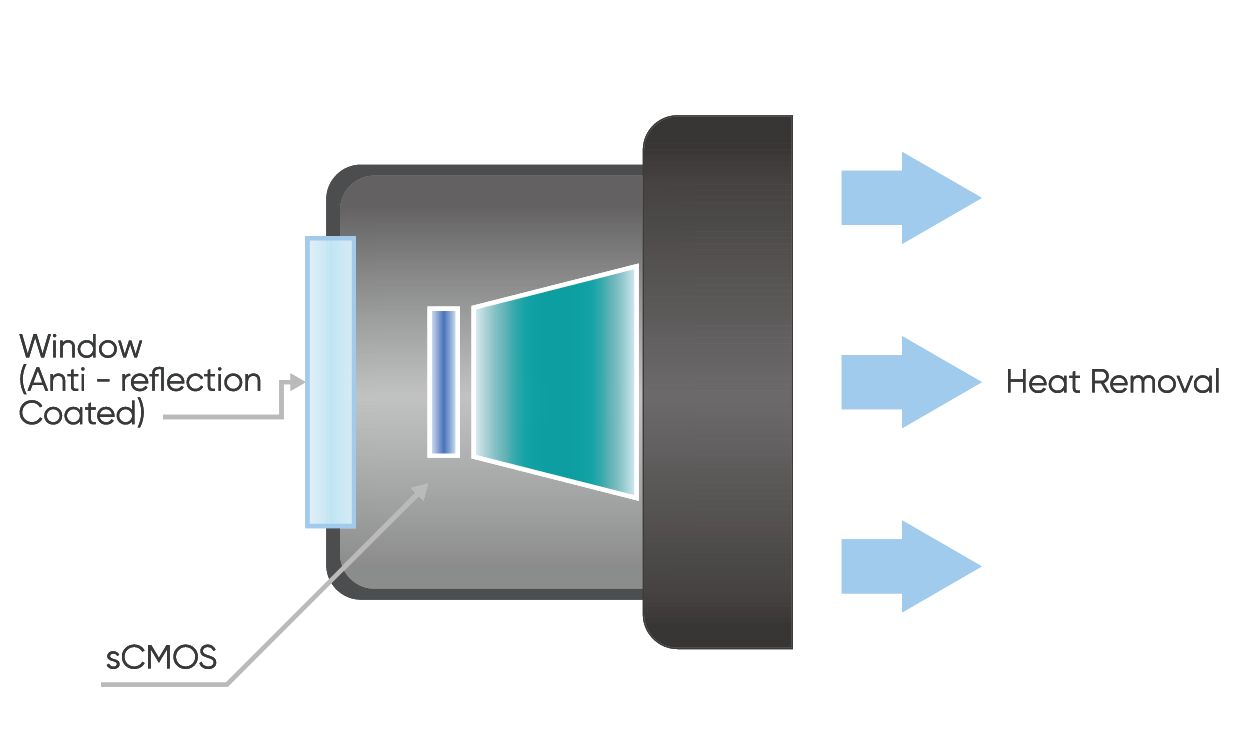

60 ℃ depth cooling temperature difference

Aries 16 is built with Xintu's new generation of cooling technology, the depth of cooling can be below the ambient temperature of 60 ℃ stable level, effectively reducing thermal noise, improving the imaging signal-to-noise ratio, to ensure the accuracy of the measurement results.

Technical Parameters >

Camera Model:Aries 16
Color/Black & White:Black & White
Quantum efficiency: 90.7 % @ 550 nm (peak)
Resolution:800(H) x 600(V)
Diagonal size:22.6 mm
Pixel size: 16 μm x 16 μm
Effective area: 12.8 mm x 9.6 mm
Full-well capacity: Typical: 73 ke-
Dynamic Range: Typical: 94.8 dB
Frame rate:60 fps @ HDR mode / 25 fps @ Low noise mode
Readout noise:Typ. : 1.6e- @ HDR mode, 0.9e- @ Low noise mode
Shutter type: Rolling shutter/global reset
Exposure time:26 μs ~ 60 s
Dark signal inhomogeneity: 0.3 e-
Light response inhomogeneity:0.30%
Cooling method: air-cooled, water-cooled
Cooling temperature: air-cooled: 50 °C below ambient, water-cooled: 60 °C below ambient
Dark current noise: <0.2 e- / pixel /s
Binning:2 x 2, 4 x 4, any bin
ROI: Support
Trigger Mode: Hardware, Software
Trigger Outputs:Start Exposure, Global Exposure, End of Readout, High Level, Low Level
External trigger connection: SMA
Time Stamp:Support
Interface:USB 3.0 & Cameralink
SDK:Support
Bit depth: 12 bit & 16 bit
Optical interface: C-mount
Power supply: 12V / 8A
Power consumption:38W
Camera size: 95 mm × 95 mm × 114 mm
Weight:1500g
PC Software: Mosaic 3.0 / Samplepro / Labview / Matlab / Micro-Manager
Compatible Systems:Windows
Operating Temperature: Operating: Temperature 0~40 °C, Humidity 0~85%
Storage: Temperature 0~60 °C, Humidity 0~90%
