Detailed parameters
| Shape of the photocathode polar region | orbicular |
| Photocathode polar area dimensions | 5 mm diameter |
| Wavelength (short) | 300 nm |
| Wavelength (long) | 740 nm |
| Wavelength (peak) | 520 nm |
| Dimensions (W x H x D) | 51.0 x 30.0 x 25.0 mm |
| Input Voltage | +4.5 to +5.5 V |
| Maximum value Input voltage | 6 V |
| Maximum value Input current | 10 mA |
| Maximum value Output signal current | 40 μA |
| Maximum value Control voltage | +0.9 (input impedance 1 MΩ) V |
| Recommended control voltage adjustment range | +0.5 to +0.8 (input impedance 1 MΩ) V |
| [Cathode] Typical value of radiation sensitivity | 189 mA/W |
| [Anode] Typical Radiation Sensitivity | 1.9 x 105 A/W |
| [Anode] Dark Current (After 30 Minutes) Typical | 3 nA |
| [Anode] Dark Current (after 30 minutes) Max. | 10 nA |
| [Time Response] Rise Time Typical | 1 ns |
| Ripple noise (peak-to-peak) max | 0.6 mV |
| Establishment time max. | 10 s |
| Operating Temperature | +5 to +35 °C |
| Storage temperature | -20 to +50 °C |
| weights | 85 g |
Door control specifications
| parameters | Description/Value | unit (of measure) | ||
| Door control mode | paradigm | normally open | - | |
| Gate Width (Half Width) | 1 ms to DC | - | ||
| rising time | typical value | 0.1 | ms | |
| descent time | typical value | 0.3 | ms | |
| repetition rate | maximum values | 300 Hz (gate width 1 ms) | - | |
| switching ratio | typical value | 103 | - | |
| latency | typical value | 0.1 (up), 0.6 (down) | ms | |
| Door control signal input | power level (elec.) | TTL level | - | |
| (high level: +2 V to +5 V) | ||||
| switching ratio | 10 | kΩ | ||

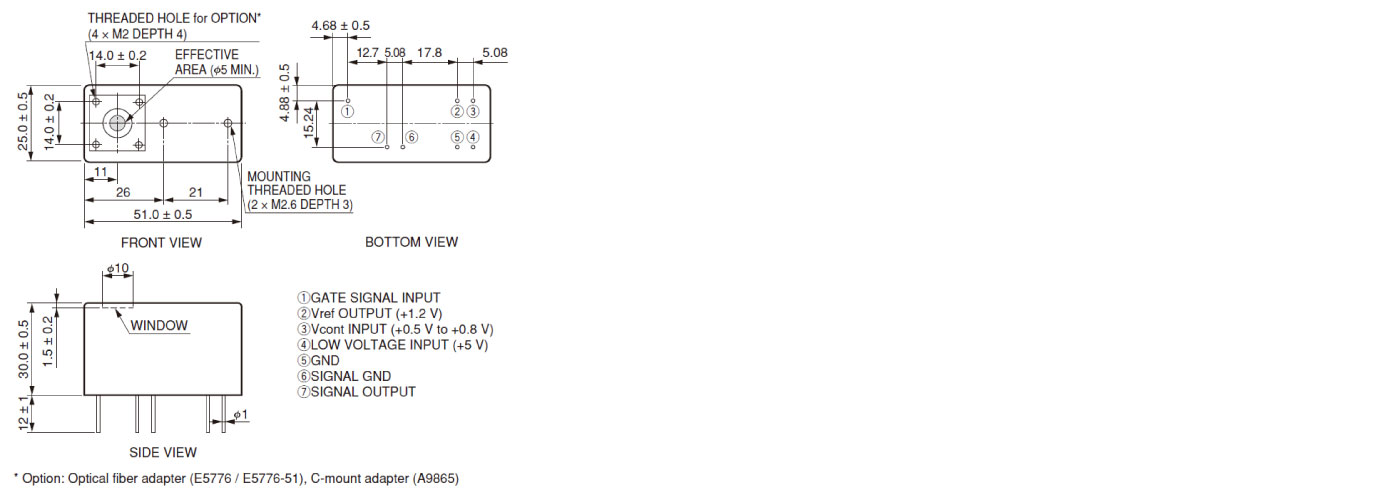

Outline dimension drawing (unit: mm)
