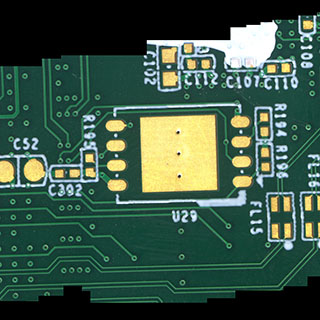

• Real-time image stitching

  Michrome 6 is equipped with Xintu Mosaic computational imaging software, which provides you with real-time image stitching advanced imaging functions, and generates large stitched images simultaneously within seconds of moving the carrier table, which is fast, smooth and hassle-free!



• Real-time depth-of-field fusion

  Michrome 6 is equipped with Xintu Mosaic Computational Imaging Calculator, which provides you with real-time depth-of-field fusion, generating clear large depth-of-field images while you rotate the focus ring to shoot different depth-of-field points, which is fast, accurate and efficient!



• 6 million resolution

  With 6 megapixels for most brightfield microscopic imaging applications, the economical positioning combined with the Mosaic V2's many features provide users with a value-packed application experience.



Technical Parameters >

• Model:MIchrome 6
• Chip Type:CMOS
• Chip Model:SONY IMX178LQJ-C
• Color / Black & White:Color
• Diagonal size:8.92 mm
• Resolution: 2.4 μm x 2.4 μm
• Pixel size: 6MP, 3072 (H) x 2048 (V)
• Effective area: 7.4 mm x 4.9 mm
• Shutter Type:Rolling
• Frame rate:41 fps @ USB3.0
• Exposure time:11 μs ~ 12 s
• Binning:2 x 2, 3 x 3, 4 x 4
• Color Temperature:2000 ~ 15000 K
• Software: Mosaic V2
• Image format:TIFF,JPG,PNG,DICOM
• Multi-camera: supports 4 cameras running simultaneously on the SDK.
• SDK:C , C++, C# , Directshow , Twain
• Optical interface:C interface
• Bit depth: 16 bit, 8 bit
• Power supply: 3 W
• Operating environment: Temperature: -10~45 ℃; Humidity: 10~85%
• Data interface: USB 3.0
• Camera size: 68 mm x 68 mm x 46 mm
• Weight:327 g
• OS:Windows 7,10 (32 Bit/64 Bit),Mac
• Computer Configuration: CPU: Intel Core i5 or above (quad-core or above), RAM: 8G or above
